DVCMPerforated air diffuser

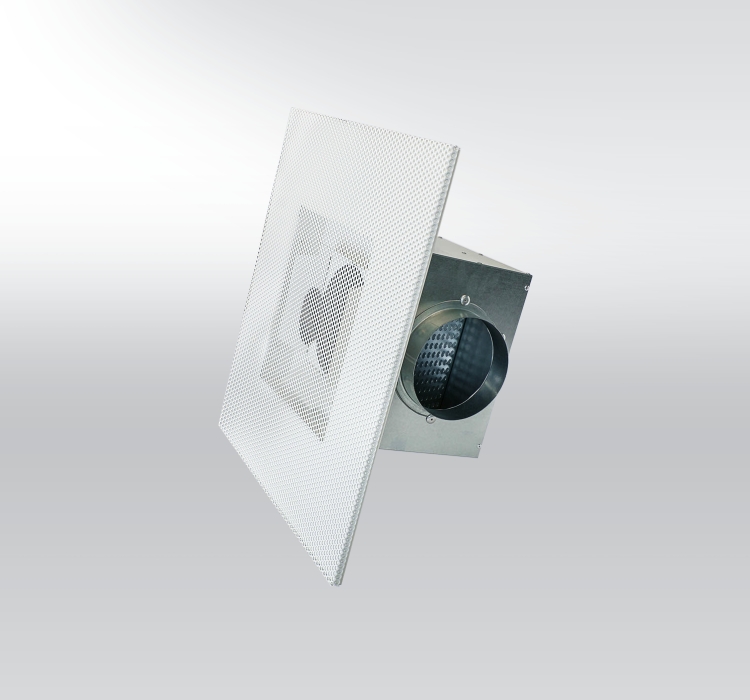

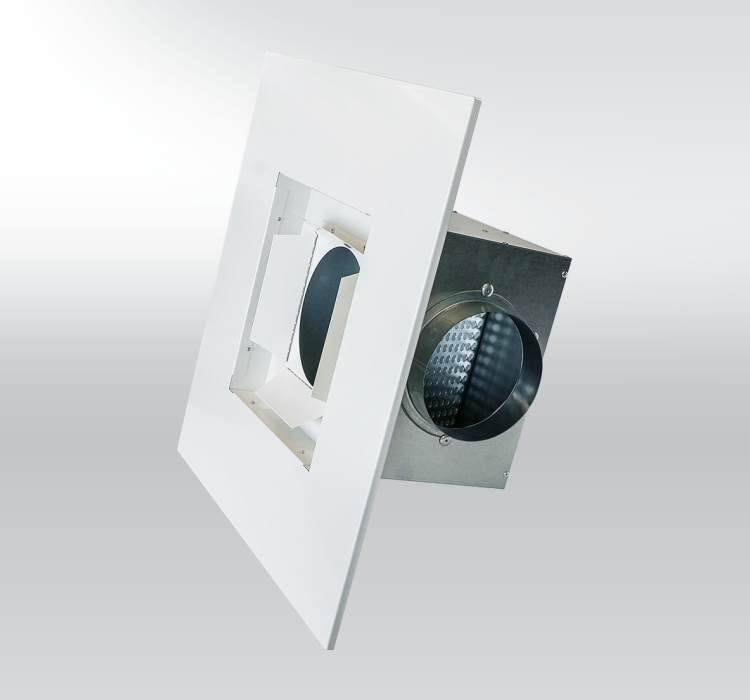

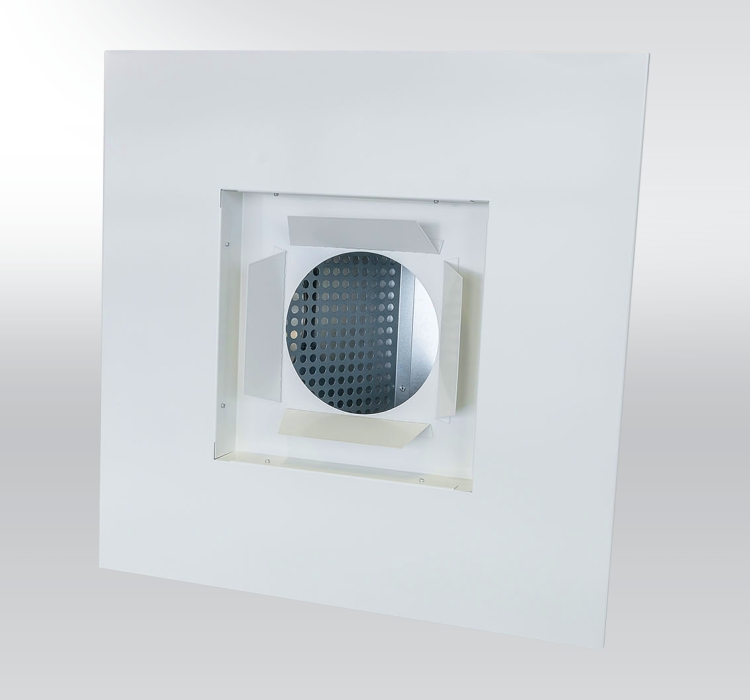

DVCM – Perforated air diffuser for air supply or air exhaust, with excellent out-look when installing into suspended ceiling with square gypsum sound attenuating cassettes. Duct air inlet/exhaust on the plenum box can be installed from the site or from the top. Plenum box has option to be equipped with regulating flap and perforated air diffusing plate.



Characteristics

  • Installation into ceiling or suspended below ceiling
  • For offices, cinemas, shopping centers, etc.
  • Airflow volume from 40 to 950 m3/h
  • Box dimension: 250, 300, 400, 500, 550
  • Front plate dimension: 300, 400, 500, 600, 625
  • Installation height from 2,6 to 4,0 m
  • For heating and cooling with ∆tp ≤ −15 K
  • Galvanized plenum box
  • Front panel - powder coated in RAL 9010
