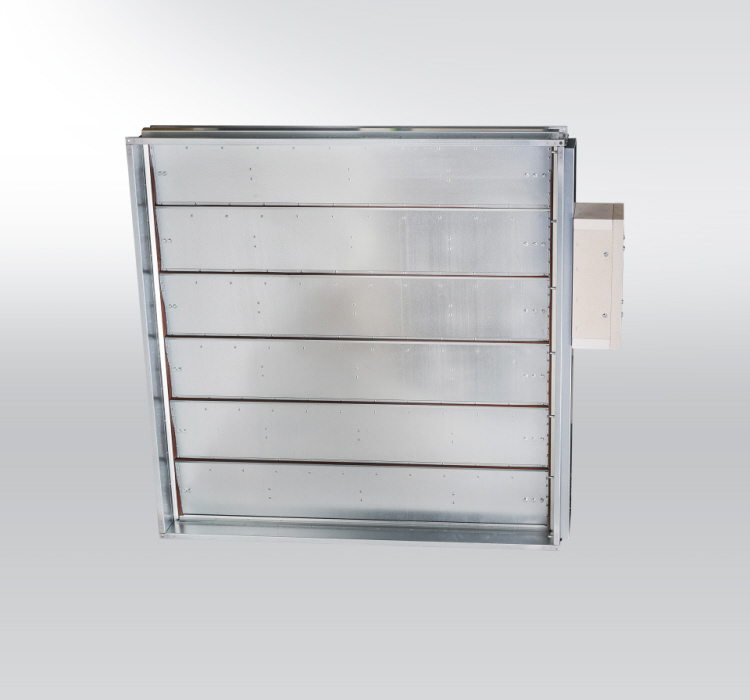

SEDS-LSingle compartment smoke extraction damper

SEDS-L – Single comparement smoke extraction damper allows usage in smoke extraction ducting systems. Suitable for heat and smoke extraction from one comparement.



Characteristics

  • Square dampers from 200 × 200 mm to 1200 x 1200 mm
  • CE certified acc. to EN 12101-8
  • Tested in accordance with EN 1366-10
  • Cycling test in class Cmod acc. to EN 12101-8
  • Damper actuating by electrical actuator
  • External Casing leakage class B, Internal leakage class 3 acc. to EN 1751
  • For installation in vertical or horizontal position of blade
  • Classified acc. to EN 13501-4
  • ES 120/600, activation AA/MA
  • Max. air speed in the system of 15 m/s, allowed pressure up to 500 Pa, or underpressure up to - 1500 Pa
